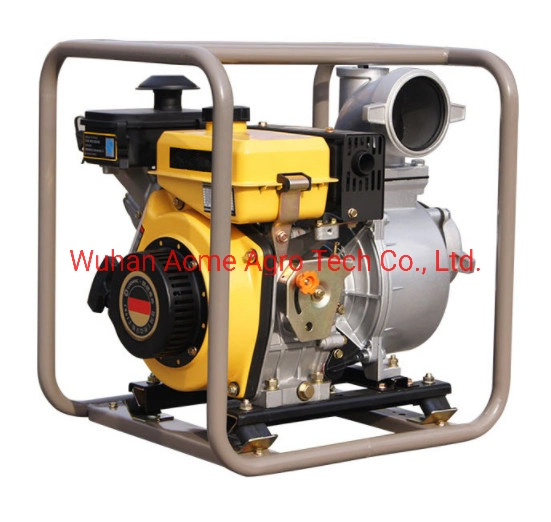

agriculture use 2inch diesel water pumpirrigation diesel water pump for sale
2inch, 3 inch and 4 inch models for option
Recoil and Electric start are optional ensure easy start
| MODEL | DP20 | DP30 | DP40 | |
| PUMP | Discharge port dia(mm) | 50(2in) | 80(3in) | 100(4in) |
| Max.Capacity(m3/hr) | 36 | 60 | 96 | |
| Max.Head(m) | 28 | 25 | 22 | |
| Starting System | Recoil or Electric | Recoil or Electric | Recoil or Electric | |
| Self-Prioming Time(s/4m) | 80 | 120 | 180 | |
| Max.Suction Head(m) | 8 | 8 | 8 | |
| ENGINE | Engine Type | 170F | 178F | 186F |
| Rated Output(hp) | 4 | 6 | 8 | |
| Consumption of Fuel(g/kw.h) | 284 | 280 | 273 | |
| Lgnition System | Direct Injection | Direct Injection | Direct Injection | |
| Fuel Tank Capacity(l) | 2.5 | 3.5 | 5.5 | |
| Displacement(cc) | 211 | 296 | 406 | |
| DIMENSION | Net Weight(kg) | 38 | 48 | 64.5 |
| Gross Weight(kg) | 40 | 50 | 66 | |
| Dimension(mm) | 520*410*515 | 565*440/550 | 650*480*605 | |
| PCS in 1*20GP | 224 | 208 | 108 | |
| PCS in 1*40HQ | 550 | 378 | 288 | |
