DIN EN 856 Four or Six Steel Wire Reinforced Heavy Duty Hydraulic Hose R15
Standard: DIN EN 856 SAE 100R15

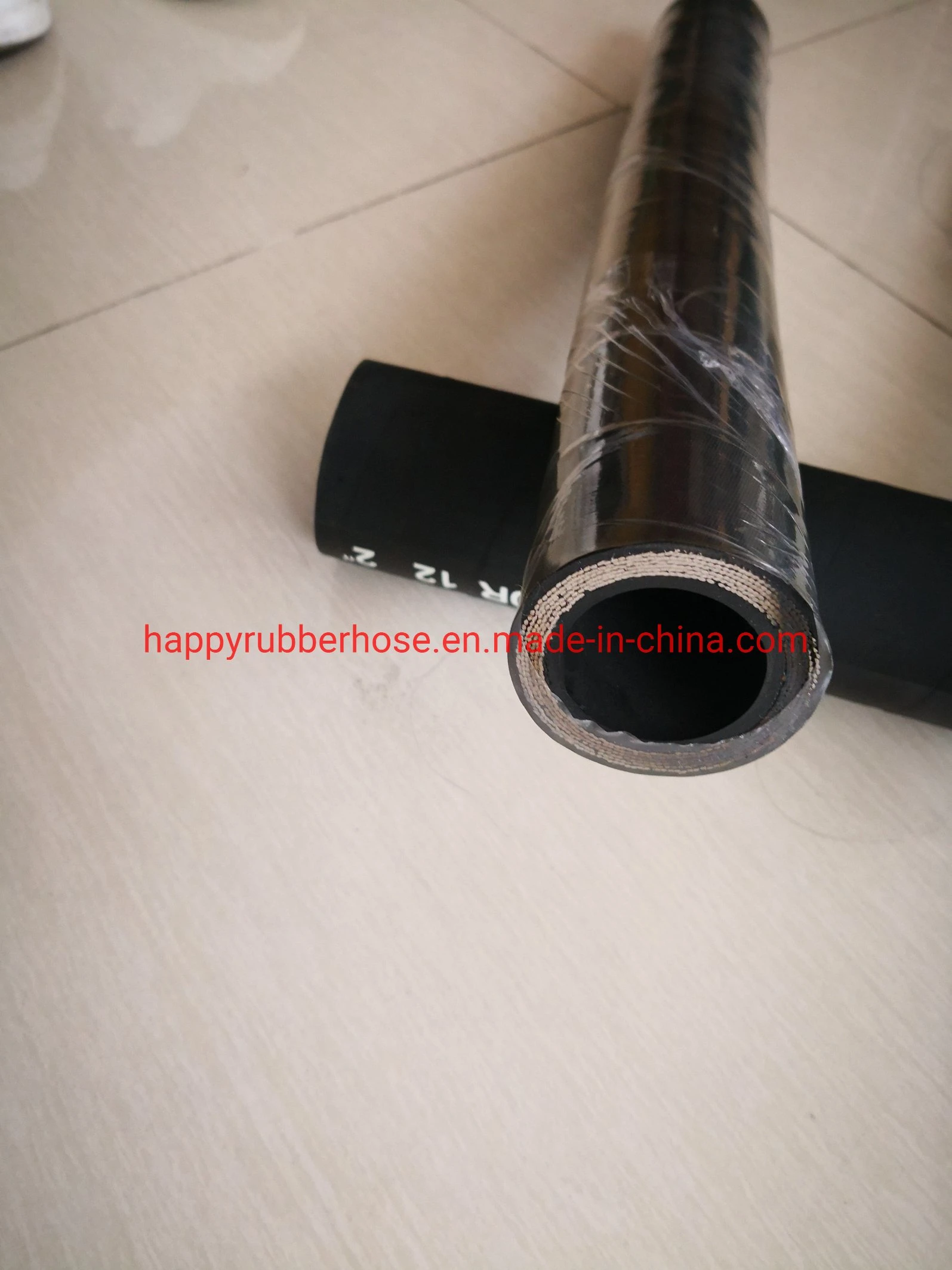

Pictures of R15 Hydraulic Hose
Standard: DIN EN 856 SAE 100R15
Construction of hydraulic hose R15:
Tube : Synthetic rubber, resistant against hydraulic fluids
Reinforcement : To 1" Four spiral layers and Up 1" six spiral layers
Cover : Abrasion and ozone resistant synthetic rubber
Temperature Range: -40°C to 121°C / -40°F to +250°F
Specifications of R15 High Pressure Rubber Hose
| SIZE | SAE | I.D | W.D | O.D | W.P | P.P | B.P | min B.R | W.T | ||||||
| mm | inch | Dash | Min | Max | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| 10 | 3/8 | -6 | 9.3 | 10.1 | 20.3 | 23.3 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 5.91 | 150 | 0.80 |
| 13 | 1/2 | -8 | 12.3 | 13.5 | 24.0 | 26.8 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 7.87 | 200 | 0.95 |
| 19 | 3/4 | -12 | 18.6 | 19.8 | 32.9 | 36.1 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 10.40 | 265 | 1.85 |
| 25 | 1 | -16 | 25.0 | 26.4 | 38.9 | 42.9 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 13.00 | 330 | 2.90 |
| 32 | 1 1/4 | -20 | 31.4 | 33.0 | 48.4 | 51.5 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 17.52 | 445 | 4.20 |
| 38 | 1 1/2 | -24 | 37.7 | 39.3 | 56.3 | 59.6 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 20.87 | 530 | 5.60 |
Pictures of R15 Hydraulic Hose
