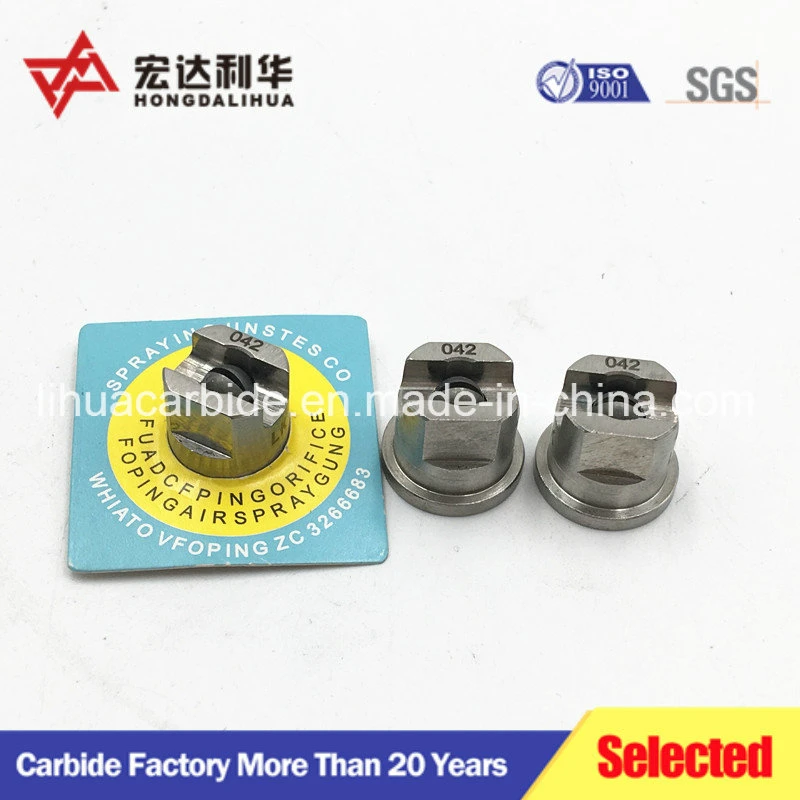

Airless Nozzle Carbide TC Tips
Oil Nozzles Description:
Slurry nozzles or mud nozzles are widely applied in the field of oil industry.As an essential part of oil and gas drilling,mud nozzles play a key role to flow velocity and pressure. It's important that nozzles fit well and are arranged for maximum flow benefits. Zhengtong's mud nozzles are manufactured in a variety of styles, including threaded, standard,and extended, so they match all bit designs.
Applications:
1.Carbide nozzles are tools and should be looked after and protected from damage at work site.
2.Boron carbide nozzles are the most commonly used nozzles in the sandblasting / abrasive blast cleaning industry. They are tough and are best suited for use in harsh work site conditions.
Tungsten carbide nozzles are economical and work well with most abrasives.
Description of carbide nozzle:
1.With Submicron grain size
2.High wear resistance and toughness
3.High combination abilities
4.Precision Ground and polished
5.With HIP sintering
Nozzles Grade Recommended:
| Grade | Density g/cm3 | T.R.S MPa | Hardness HRA | Performance & Application recommended |
| YL10.2 | 14.50 | 3400 | 92.5 | Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,especially for cut-off tool and sick prick. |
| YG3 | 15.20-15.40 | 1400 | 91.5 | Medium grain ,for finishing machining of cast iron and non-ferrous Metals |
| YG6X | 14.90 | 1560 | 91.0 | Qualified for machining of chilled cast iron,alloy cast iron,refractory steel analloy steel.Also qualified for the machining of common cast iron. |
| YS2T | 14.45 | 2800 | 92.5 | Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,especially for cut-off tool and sick prick. |
| YG3X | 15.20-15.40 | 1300 | 92 | Fine Grain ,for finishing machining of cast iron and non-ferrous metals |
Nozzles TC Tips Performance Data:
| Spray Angle at 3 bar | Spray Tip No. | Equiv. Orifice Dia (mm) | Capacity *( liters Per Minute) | Appro.**Spray Pattern Width (cm) at 30cm Distance | |||
| 50 Bar | 100 Bar | 150 Bar | 200 Bar | ||||
| 110° | 110017-TC | .28 | .27 | .39 | .47 | .55 | 39 |
| 1100025-TC | .33 | .40 | .57 | .70 | .81 | 42 | |
| 1100033-TC | .38 | .53 | .75 | .92 | 1.1 | 43 | |
| 1100039-TC | .41 | .63 | .89 | 1.1 | 1.3 | 46 | |
| 100050-TC | .46 | .81 | 1.1 | 1.4 | 1.6 | 48 | |
| 1100067-TC | .53 | 1.1 | 1.5 | 1.9 | 2.2 | 53 | |
| 1100080-TC | .58 | 1.3 | 1.8 | 2.2 | 2.6 | 56 | |
| 11001-TC | .66 | 1.6 | 2.3 | 2.8 | 3.2 | 58 | |
| 110015-TC | .79 | 2.4 | 3.4 | 4.2 | 4.8 | 63 | |
| 11002-TC | .91 | 3.2 | 4.6 | 5.6 | 6.4 | 66 | |
| 11003-TC | 1.1 | 4.8 | 6.8 | 8.4 | 9.7 | 68 | |
| 11004-TC | 1.3 | 6.4 | 9.1 | 11.2 | 12.9 | 71 | |
| 11005-TC | 1.4 | 8.1 | 11.4 | 14.0 | 16.1 | 71 | |
| 110053-TC | 1.5 | 8.5 | 12.1 | 14.8 | 17.1 | 71 | |
| 11006-TC | 1.6 | 9.7 | 13.7 | 16.7 | 19.3 | 71 | |
| 11007-TC | 1.7 | 11.3 | 16.0 | 19.5 | 23 | 71 | |
| 11008-TC | 1.8 | 12.9 | 18.2 | 22 | 26 | 71 | |
| 11009-TC | 1.9 | 14.5 | 21 | 25 | 29 | 71 | |
| 11010-TC | 2.0 | 16.1 | 23 | 28 | 32 | 71 | |
| 11011-TC | 2.2 | 17.7 | 25 | 31 | 35 | 71 | |
| 11012-TC | 2.3 | 19.3 | 27 | 33 | 39 | 71 | |
| 65° | 650055-TC | .48 | .88 | 1.3 | 1.5 | 1.8 | 33 |
| 650067-TC | .53 | 1.1 | 1.5 | 1.9 | 2.2 | 38 | |
| 650080-TC | .58 | 1.3 | 1.8 | 2.2 | 2.6 | 38 | |
| 95° | 9503-TC | 1.1 | 4.8 | 6.8 | 8.4 | 9.7 | 56 |
Advantage
1, Ideal for paint spraying and the application of sealants and protective coatings in automotive manufacturing
2, Erosion-resistance tungsten carbide orifice insert provides
3, Excellent Corrosion Resistance
4,High-impact flat spray pattern with tapered edges, provides even coverage when sprays overlap
5, Tip orifice inserts is recessed in a solid stainless steel tip body to protect against damage
Company Brief Introduction
Established in 1990, specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products.
Our products sold to worldwide . We have built a long term business relationship with the customers from Italy, Portugal, Germany, Turkey, USA, Mexico, Russia, India, Australia and so on.
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: Woodworking tool cutter, V-cutter, mining tool, Any customized carbide products are acceptable.
Month capacity of 15Ton
We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine etc, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
